Description

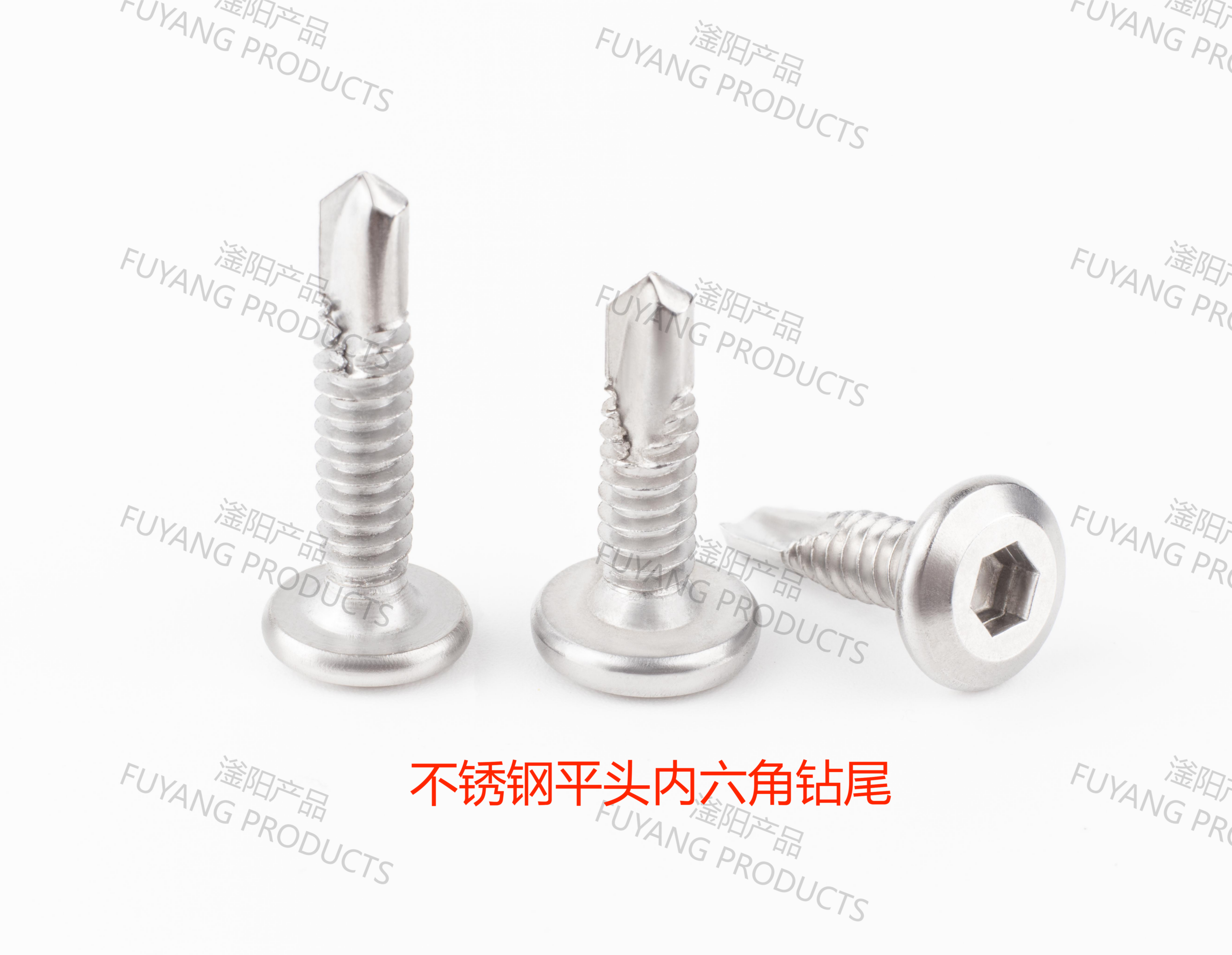

Fuyang Metal is a professional hex socket button head self drilling screws manufacturer in China. We manufacture carbon steel C1022, stainless steel SS410, stainless steel 304, stainless steel 316 and customized drilling screws for distributors, wholesalers and industrial buyers.

The internal hex socket provides positive tool engagement and efficient torque transfer during installation. The low-profile button head offers a clean appearance and distributes the fastening load over a broader surface than many conventional screw heads.

The integrated drill point can drill, tap and fasten suitable metal sheets in one operation. These screws are suitable for metal fabrication, equipment assembly, electrical enclosures, steel profiles and other applications where a hex socket drive is preferred.

Hex Socket Button Head Self Drilling Screws Specifications

Product Name	Hex Socket Button Head Self Drilling Screws
Alternative Name	Allen Drive Button Head Self Drilling Screws
Standard	Manufacturer Standard or Customized Drawing
Material	Carbon Steel C1022, SS410, SS304, SS316 or Bi-Metal
Head Type	Button Head / Low Round Head
Drive Type	Internal Hex Socket / Allen Drive
Diameter	3.5mm, 4.2mm, 4.8mm, 5.5mm, 6.3mm or customized
Length	13mm–100mm or customized
Drill Point	#2, #3, #4, #5
Thread Type	Self Tapping Thread, Full Thread or customized
Surface Treatment	Zinc Plated, Black Zinc, Dacromet, Ruspert, Plain Stainless Steel or customized coating
Packaging	Bulk Carton, Small Box, Pallet or customized export packaging
OEM Service	Customized dimensions, socket sizes, coatings, labels and packaging available

Internal Hex Socket Drive

The internal hex socket, also known as an Allen drive, provides positive engagement between the screw and installation bit. This drive design helps transfer installation torque efficiently and provides a neat appearance after fastening.

Hex socket dimensions can be selected according to the screw diameter, head dimensions, installation torque and customer drawing.

Carbon Steel and Stainless Steel Options

Carbon Steel C1022 Drilling Screws

Heat-treated C1022 carbon steel provides good hardness and drilling performance for metal-to-metal fastening. Available finishes include zinc plating, black zinc, Dacromet, Ruspert and customized corrosion-resistant coatings.

SS410 Socket Drive Drilling Screws

Stainless steel SS410 combines useful corrosion resistance with the hardness required for drill-point performance. It is suitable for many outdoor, construction and industrial fastening applications.

SS304, SS316 and Bi-Metal Options

SS304 and SS316 provide increased corrosion resistance for humid, coastal and corrosive environments. A bi-metal design may be used when a corrosion-resistant stainless steel body and stronger carbon steel drill point are both required.

Product Features and Benefits

• Internal hex socket provides reliable tool engagement.
• Button head creates a clean, low-profile appearance.
• Broad head surface helps distribute the clamping load.
• Drilling and fastening can be completed in one operation.
• Carbon steel and stainless steel options are available.
• Different drill points support different metal thicknesses.
• Suitable for power-tool and automated installation.
• Custom dimensions, coatings and packaging are supported.

Applications of Socket Drive Drilling Screws

• Metal sheet fabrication
• Light-gauge steel profiles
• Machinery and equipment assembly
• Electrical cabinets and enclosures
• HVAC and ventilation systems
• Window and door components
• Automotive components
• Furniture and display systems
• General metal-to-metal fastening

For additional head styles and drive options, view our

complete range of self drilling screws
.

Available Sizes and Drill Points

Standard diameters include 3.5mm, 4.2mm, 4.8mm, 5.5mm and 6.3mm. Different lengths, internal hex socket sizes and drill point configurations can be manufactured according to customer drawings, samples and application requirements.

The correct screw diameter, length and drill point should be selected according to the material type, total fastening thickness and required drilling capacity.

Manufacturing and Quality Control

Our production process includes raw material inspection, cold forming, thread rolling, heat treatment, drill point forming, surface treatment and final packaging.

Quality control includes dimensional inspection, socket inspection, thread inspection, drill point checking, hardness testing, drilling performance testing, coating inspection and packaging inspection.

Packaging and OEM Service

Products can be packed in bulk cartons, small boxes, plastic bags, master cartons and export pallets. Customized box designs, customer logos, private labels, carton marks and pallet packaging are available according to order requirements.

Request a Quote

Contact Fuyang Metal for available materials, dimensions, socket sizes, drill points, coatings, samples and bulk prices. Please provide the diameter, length, material, surface treatment, quantity and application so that we can prepare an accurate quotation.
