Description

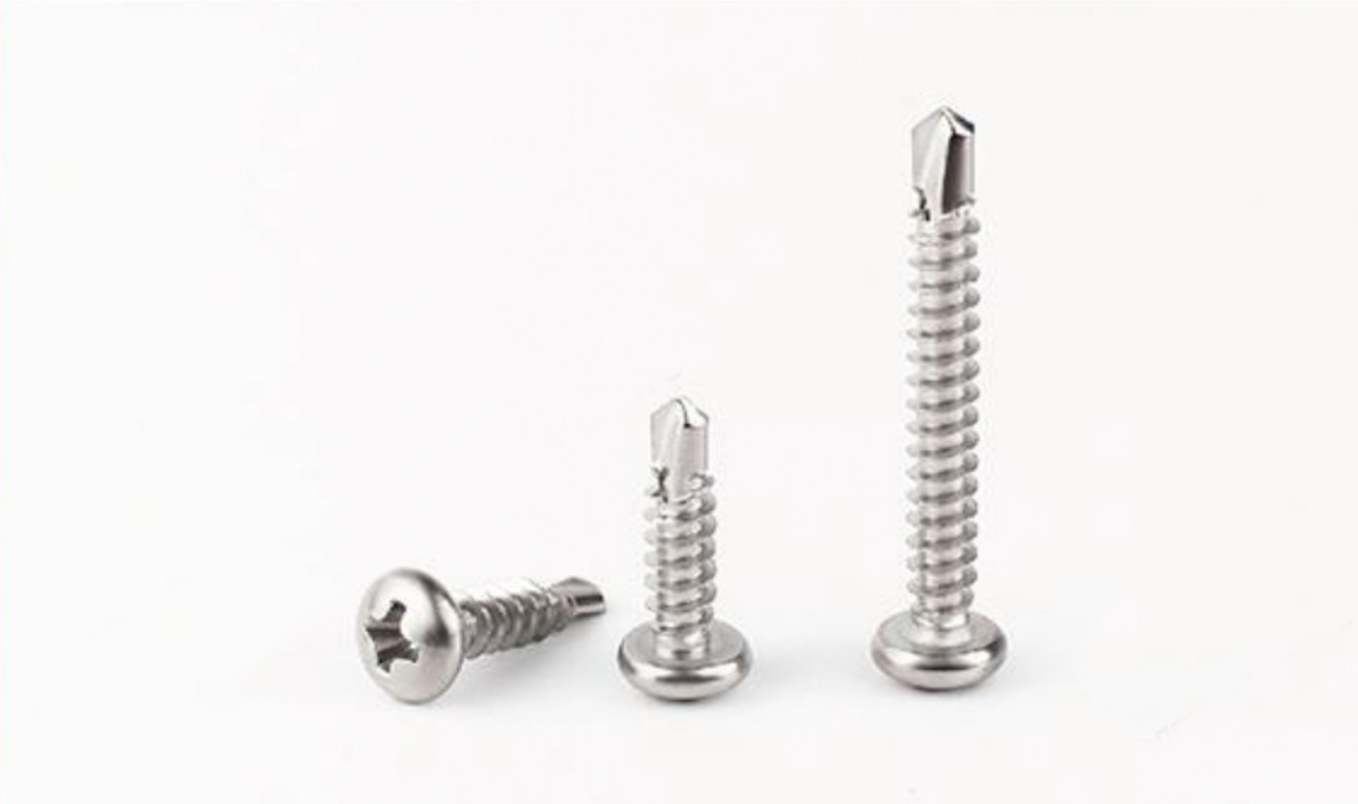

Phillips Pan Head Self Drilling Screws

Fuyang Metal is a professional Phillips pan head self drilling screws manufacturer in China. We supply carbon steel and stainless steel pan head self drilling screws for global distributors, wholesalers, construction companies and industrial buyers.

Phillips pan head self drilling screws combine drilling, tapping and fastening in one operation. The drill point can create its own hole in suitable metal sheets, eliminating the need for a separate pilot hole. The rounded pan head provides a broad bearing surface and a clean finished appearance.

Our pan head self drilling screws are widely used for metal sheet fixing, steel framing, window and door installation, HVAC systems, electrical equipment, machinery and general industrial assembly.

Phillips Pan Head Self Drilling Screws Specifications

Product Name	Phillips Pan Head Self Drilling Screws
Standard	DIN 7504-N / ISO 15481 or customized
Material	Carbon Steel, Stainless Steel SS410, Stainless Steel 304, Stainless Steel 316
Head Type	Pan Head
Drive Type	Phillips Drive, Pozi Drive
Diameter	2.9mm, 3.5mm, 3.9mm, 4.2mm, 4.8mm, 5.5mm, 6.3mm or customized
Length	9.5mm–100mm or customized
Drill Point	#2, #3, #4, #5
Thread Type	Self Tapping Thread, Full Thread or customized
Surface Treatment	Plain Stainless Steel, Zinc Plated, Dacromet, Ruspert or customized coating
Packaging	Bulk Carton, Small Box, Pallet or customized export packaging
OEM Service	Custom sizes, materials, finishes, labels and packaging available

Features of Pan Head Self Drilling Screws

• Self drilling point combines drilling and fastening in one operation.
• No separate pilot hole is required in suitable metal applications.
• Rounded pan head provides a wide bearing surface.
• Phillips recess allows convenient installation with common power tools.
• Sharp drill point helps improve drilling efficiency.
• Available in stainless steel and carbon steel.
• Multiple diameters, lengths, drill points and coatings are available.
• Suitable for manual, power-tool and automated assembly.

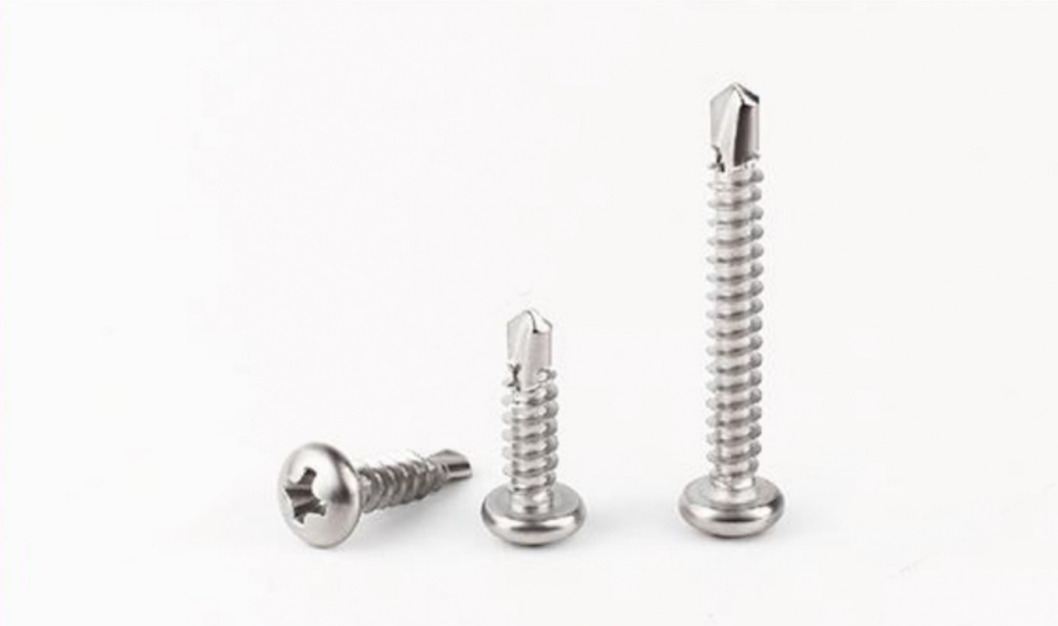

Stainless Steel Pan Head Self Drilling Screws

Stainless steel pan head self drilling screws are suitable for applications requiring a clean appearance and improved corrosion resistance. SS410 offers good hardness and drilling performance and is commonly used for manufacturing self drilling screws.

Stainless steel 304 and 316 provide increased corrosion resistance for humid, outdoor and corrosive environments. Their drilling suitability depends on the material being fastened, the drill point design and the required drilling capacity.

Carbon Steel Pan Head Self Drilling Screws

Carbon steel pan head self drilling screws provide reliable drilling performance and a cost-effective solution for construction and industrial assembly. Available finishes include zinc plating, Dacromet, Ruspert and other customized corrosion-resistant coatings.

Applications of Pan Head Self Drilling Screws

Pan head drilling screws are commonly used for fastening metal components where a broad bearing surface and a neat rounded head are required. Typical applications include:

• Sheet metal fixing
• Steel framing and light steel structures
• Window and door installation
• Aluminum profiles
• HVAC and ventilation systems
• Electrical cabinets and enclosures
• Machinery and industrial equipment
• Automotive and general assembly

Available Pan Head Self Drilling Screw Sizes

Fuyang Metal supplies Phillips pan head self drilling screws in diameters from 2.9mm to 6.3mm and in a wide range of lengths. Standard and customized dimensions are available according to customer drawings, samples and application requirements.

The correct diameter, screw length and drill point should be selected according to the material type, total fastening thickness and required drilling capacity. Please provide the material thickness and application when requesting a quotation.

Manufacturing and Quality Control

Our manufacturing process includes raw material inspection, cold forming, thread rolling, heat treatment, drill point forming, surface treatment and final packaging.

Quality inspections include dimensional checking, head and recess inspection, thread inspection, drill point inspection, hardness testing, drilling performance testing, coating inspection and packaging inspection.

Why Choose Fuyang Metal

Founded in 1998, Fuyang Metal is an ISO 9001 certified fastener manufacturer in China. We manufacture blind rivets, self drilling screws and customized fasteners for customers in Europe, the USA, India, Southeast Asia and other international markets.

We support bulk production, stable long-term supply, OEM manufacturing, customized product labels, private-label boxes, carton marks and export pallet packaging.

Packaging and OEM Service

Our pan head self drilling screws can be packed in bulk cartons, small boxes, plastic bags, master cartons and export pallets. Customized box designs, customer logos, product labels and carton marks are available according to order quantity and packaging requirements.

Request a Quote for Pan Head Self Drilling Screws

Looking for a reliable Phillips pan head self drilling screws manufacturer in China? Contact Fuyang Metal for available sizes, samples, bulk pricing, technical information and customized packaging solutions.

Please include the material, diameter, length, drill point, surface treatment, packaging and required quantity in your inquiry so that we can prepare an accurate quotation.

Pleasecontact Fuyang Metalfor product specifications, samples and bulk quotations.

This product is commonly supplied according toISO 15481 or DIN 7504-N dimensional requirements.
