Description

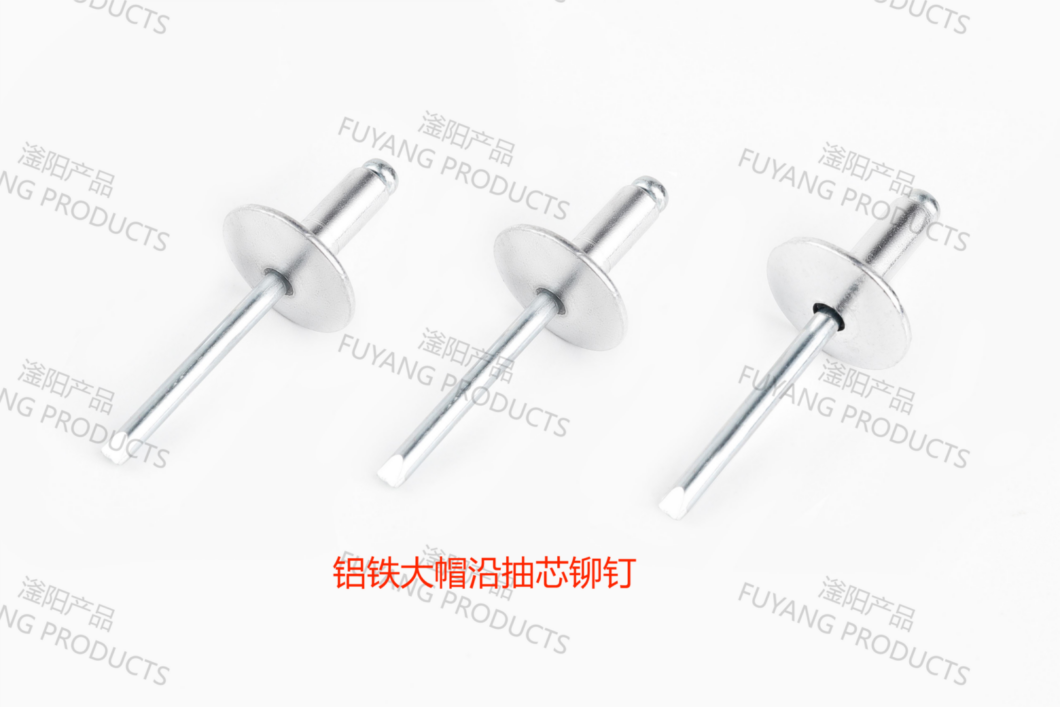

Fuyang Metal manufactures large flange blind rivets for fastener distributors, wholesalers and industrial buyers. These open end blind rivets feature an enlarged head that provides a wider bearing surface and greater hole coverage than a standard dome head.

Our large flange rivets are available with aluminum, carbon steel, stainless steel 304 and stainless steel 410 bodies. Carbon steel, stainless steel and aluminum mandrel options can be supplied according to the required material combination and application.

Different diameters, body lengths, grip ranges, flange diameters, finishes, colors and packaging options can be manufactured according to customer requirements.

Large Flange Blind Rivets Specifications

Product Name	Large Flange Blind Rivets
Alternative Names	Large Head Blind Rivets, Wide Flange Blind Rivets or Large Flange Pop Rivets
Rivet Type	Open End Blind Rivet
Body Material	Aluminum, Carbon Steel, Stainless Steel 304 or Stainless Steel 410
Mandrel Material	Carbon Steel, Stainless Steel or Aluminum
Head Type	Large Flange Head / Large Head
Diameter	3.2mm, 4.0mm, 4.8mm, 5.0mm, 6.0mm, 6.4mm or customized
Length	6mm–40mm or customized
Grip Range	According to rivet diameter and body length
Flange Diameter	According to rivet diameter, application or customized drawing
Surface Finish	Natural Aluminum, Zinc Plated, Polished, Painted or customized
Installation	Manual, Pneumatic or Cordless Rivet Tool
Packaging	Plastic Bag, Small Box, Bulk Carton, Pallet or Customized Packaging
OEM Service	Customized materials, sizes, flange diameters, colors, labels and packaging available

Wide Large-Flange Head Design

The enlarged flange has a wider diameter than a conventional dome head. It distributes the clamping load across a larger area of the workpiece and provides increased coverage around the installation hole.

This design can be useful when fastening thin sheet, plastic, fiberglass, soft materials or components containing oversized holes. The wide head can help reduce localized pressure and the risk of the rivet head pulling through the workpiece.

A large flange does not automatically increase every aspect of joint strength. Rivet diameter, body length, grip range, hole condition, material strength and installation quality must also be considered.

Available Large Flange Rivet Materials

Aluminum Large Flange Blind Rivets

Aluminum large flange blind rivets provide low weight, useful corrosion resistance and easy installation. They can be assembled with zinc plated steel or aluminum mandrels according to the required joint performance.

Aluminum rivets are suitable for thin sheet, signs, plastic panels, ventilation equipment, trailers and general lightweight assemblies.

SS304 Large Flange Blind Rivets

SS304 large flange blind rivets provide good corrosion resistance for outdoor, humid and general industrial environments. They can be supplied with carbon steel or stainless steel mandrels.

An all-SS304 construction can be selected when higher overall corrosion resistance is required. The material combination should be confirmed according to the service environment and workpiece materials.

SS410 Large Flange Blind Rivets

SS410 large flange blind rivets provide useful mechanical strength and moderate corrosion resistance. SS410 options can be manufactured according to the required dimensions, mandrel material and joint-performance requirements.

For outdoor or corrosive applications, the suitability of SS410 should be evaluated against SS304 and other available material combinations.

Carbon Steel Large Flange Blind Rivets

Carbon steel body and steel mandrel rivets provide good mechanical strength for machinery, construction components, steel furniture and general industrial assembly.

Zinc plating and customized coatings can be applied to improve surface corrosion resistance.

Available Body and Mandrel Combinations

Rivet Body	Mandrel	Typical Characteristics
Aluminum	Zinc Plated Steel	Lightweight and economical for general applications
Aluminum	Aluminum	Lightweight all-aluminum construction
Carbon Steel	Carbon Steel	Good mechanical strength for industrial fastening
SS304	Zinc Plated Steel	Corrosion-resistant body with an economical steel mandrel
SS304	Stainless Steel	Improved overall corrosion resistance
SS410	Carbon Steel or Stainless Steel	Useful strength and moderate corrosion resistance

Features of Large Flange Blind Rivets

• Wide flange distributes the clamping load over a larger area.
• Provides greater coverage around the installation hole.
• Helps reduce localized pressure on thin and soft materials.
• Suitable for installation from only one accessible side.
• Available in aluminum, SS304, SS410 and carbon steel.
• Different body and mandrel combinations are available.
• Multiple diameters, lengths and grip ranges can be supplied.
• Suitable for manual, pneumatic and cordless rivet tools.
• Custom flange dimensions, finishes and colors are supported.
• Private-label and export packaging services are available.

Applications of Large Flange Blind Rivets

• Thin sheet-metal fabrication
• Plastic and fiberglass panels
• Automotive and trailer components
• HVAC and ventilation systems
• Electrical cabinets and enclosures
• Signs and advertising displays
• Furniture and storage systems
• Roofing and wall-cladding accessories
• Household appliances
• Machinery and industrial equipment
• Construction and maintenance

Large Flange vs Standard Dome Head

Feature	Large Flange Head	Standard Dome Head
Head Diameter	Wider head diameter	Smaller standard diameter
Load Distribution	Spread across a larger area	Concentrated over a smaller area
Hole Coverage	Greater hole coverage	Requires a correctly sized hole
Typical Workpieces	Thin sheet, plastic and soft materials	General sheet-metal components
Appearance	Larger and more visible installed head	More compact installed head

How Large Flange Blind Rivets Work

The rivet is inserted through aligned holes in the components, and the mandrel is placed into the nosepiece of a rivet tool. When the tool pulls the mandrel, the mandrel head expands and deforms the blind end of the rivet body.

The components are clamped between the large flange head and the formed blind-side head. When the required setting force is reached, the mandrel breaks at its designed break point, leaving a permanent mechanical joint.

How to Select the Correct Rivet

The correct large flange rivet should be selected according to the workpiece material, hole diameter, combined material thickness, required grip range, flange diameter, joint strength and service environment.

The rivet diameter should match the prepared hole within the specified tolerance. The body length must provide the correct grip range for the total thickness of the joined components.

Please provide the body material, mandrel material, diameter, body length, grip range and flange diameter when requesting a quotation. A drawing or physical sample can help us confirm the correct specification.

Manufacturing and Quality Control

Our manufacturing process includes raw material inspection, rivet body forming, mandrel production, heat treatment where required, surface treatment, rivet assembly, dimensional inspection and final packaging.

Quality control can include body-diameter inspection, body-length inspection, flange-diameter checking, grip-range verification, mandrel-break inspection, setting tests, tensile and shear performance tests, surface inspection and packaging inspection.

Custom Finishes and OEM Packaging

Available finishes include natural aluminum, zinc plating, polishing, painting and customized surface treatments. Color selection can be based on an approved RAL code or physical color sample.

Packaging options include plastic bags, small boxes, bulk cartons, master cartons and export pallets. Private labels, customer logos, barcode stickers, customized boxes and carton marks are available.

Request a Large Flange Blind Rivet Quote

Contact Fuyang Metal for large flange blind rivets in aluminum, SS304, SS410 and carbon steel. Different diameters, lengths, grip ranges, flange dimensions and material combinations are available.

Please provide the body material, mandrel material, rivet diameter, body length, grip range, flange diameter, quantity and packaging requirements for an accurate quotation.
