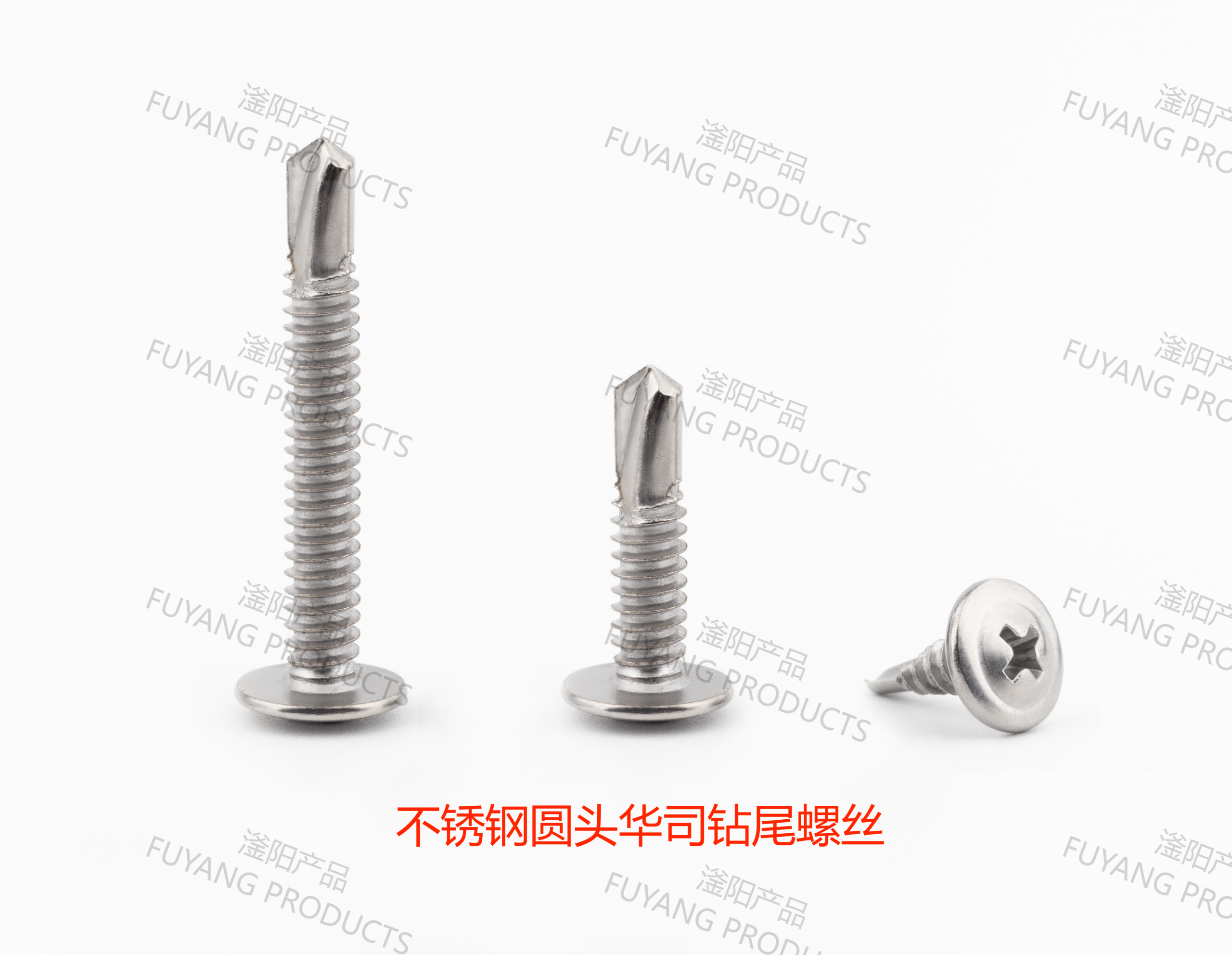

Phillips Wafer Head Self Drilling Screws

Fuyang Metal is a professional Phillips wafer head self drilling screws manufacturer in China. We manufacture carbon steel C1022, stainless steel SS410, stainless steel 304, stainless steel 316 and customized drilling screws for global distributors, wholesalers and industrial buyers.

The wide, low-profile wafer head provides a larger bearing surface than a conventional pan head. This design distributes the fastening load over a wider area and helps reduce damage to thin sheet metal and other lightweight materials.

The integrated drill point drills and taps suitable metal sheets in one operation, helping reduce installation time. These screws are commonly used for light-gauge steel framing, metal profiles, sheet metal, HVAC equipment, electrical enclosures and industrial assembly.

Phillips Wafer Head Self Drilling Screws Specifications

Product Name	Phillips Wafer Head Self Drilling Screws
Alternative Name	Modified Truss Head Self Drilling Screws
Standard	Manufacturer Standard, SAE J78 or customized drawing
Material	Carbon Steel C1022, SS410, SS304, SS316 or Bi-Metal
Head Type	Wafer Head / Modified Truss Head
Drive Type	Phillips Drive or Pozi Drive
Diameter	3.5mm, 4.2mm, 4.8mm, 5.5mm, 6.3mm or customized
Length	13mm–100mm or customized
Drill Point	#2, #3, #4, #5
Thread Type	Self Tapping Thread, Full Thread or customized
Surface Treatment	Zinc Plated, Black Zinc, Dacromet, Ruspert, Phosphated, Plain Stainless Steel or customized coating
Packaging	Bulk Carton, Small Box, Pallet or customized export packaging
OEM Service	Custom sizes, materials, coatings, labels and packaging available

Wide and Low-Profile Wafer Head Design

The wafer head, also known as a modified truss head, has a wide bearing surface and a relatively low installed profile. The large head helps distribute clamping pressure and provides stable fastening for thin metal sheets, profiles and lightweight components.

The Phillips recess is compatible with commonly available installation tools. Drive size can be matched to the screw diameter and customer requirements requirements fastening requirements.

Carbon Steel and Stainless Steel Options

Carbon Steel C1022 Drilling Screws

Heat-treated C1022 carbon steel provides good hardness and drilling performance. It is a cost-effective material for metal framing, sheet metal fabrication and general construction. Available finishes include zinc plating, black zinc, Dacromet, Ruspert, phosphating and customized coatings.

SS410 Wafer Head Drilling Screws

SS410 provides a useful combination of hardness, drilling capability and corrosion resistance. It is commonly selected when improved corrosion resistance is required without sacrificing the performance of the drill point.

SS304, SS316 and Bi-Metal Options

SS304 and SS316 offer higher corrosion resistance for humid, coastal and corrosive environments. Where both corrosion resistance and steel-drilling performance are required, a bi-metal construction with a stainless steel body and hardened carbon steel drill point may be considered.

Product Features and Benefits

• Wide wafer head provides a large bearing and clamping surface.
• Low-profile head creates a neat finished appearance.
• Self drilling point can drill and fasten in one operation.
• Phillips recess enables convenient power-tool installation.
• Suitable for thin sheet metal and light-gauge steel profiles.
• Carbon steel and stainless steel materials are available.
• Multiple drill points support different metal thicknesses.
• Custom coatings, labels and export packaging are supported.

Applications of Wafer Head Drilling Screws

• Light-gauge steel framing
• Metal profile installation
• Sheet metal fabrication
• Window and door frames
• HVAC and ventilation systems
• Electrical cabinets and enclosures
• Automotive components
• Machinery and industrial equipment
• General metal-to-metal assembly

For additional head styles and sealing washer options, view our

complete range of self drilling screws
.

Available Sizes and Drill Points

Standard metric diameters include 3.5mm, 4.2mm, 4.8mm, 5.5mm and 6.3mm. Inch sizes and customized dimensions can also be manufactured according to customer drawings, samples or application requirements.

The drill point and screw length should be selected according to the metal type, total material thickness and required drilling capacity. Customers are encouraged to provide application details before ordering.

Manufacturing and Quality Control

Our production process includes raw material inspection, cold forming, thread rolling, heat treatment, drill point forming, surface treatment and final packaging.

Quality control includes dimensional inspection, head and recess checking, thread inspection, drill point inspection, hardness testing, drilling performance testing, coating inspection and packaging inspection.

Packaging and OEM Service

Products can be supplied in bulk cartons, small boxes, plastic bags, master cartons and export pallets. Customized box designs, private labels, customer logos, carton marks and pallet packaging are available according to order quantity.

Request a Quote

Contact Fuyang Metal for available materials, sizes, drill points, surface treatments, samples and bulk prices. Please include the diameter, length, material, coating, required quantity and application in your inquiry so that we can prepare an accurate quotation.
