Description

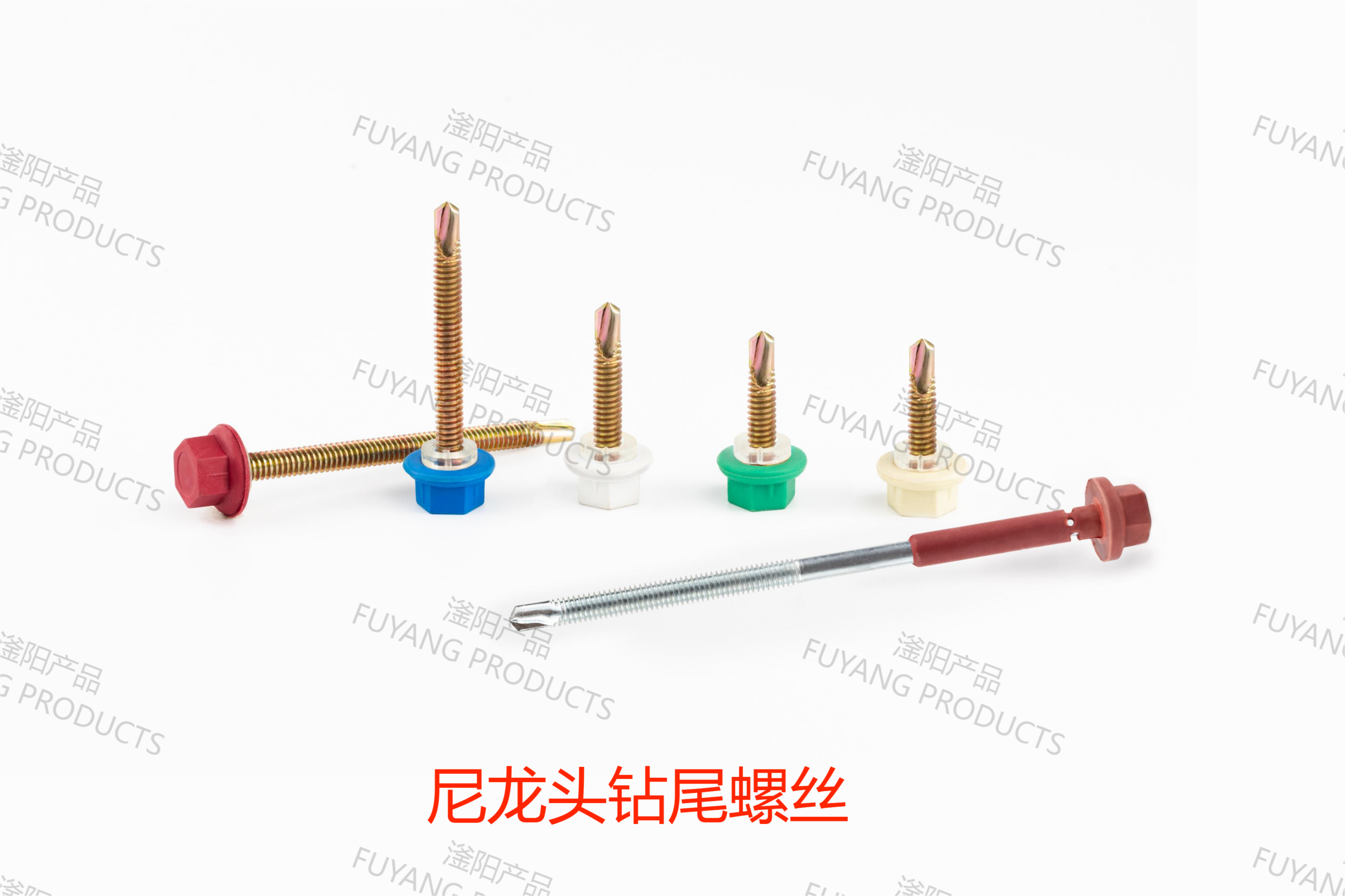

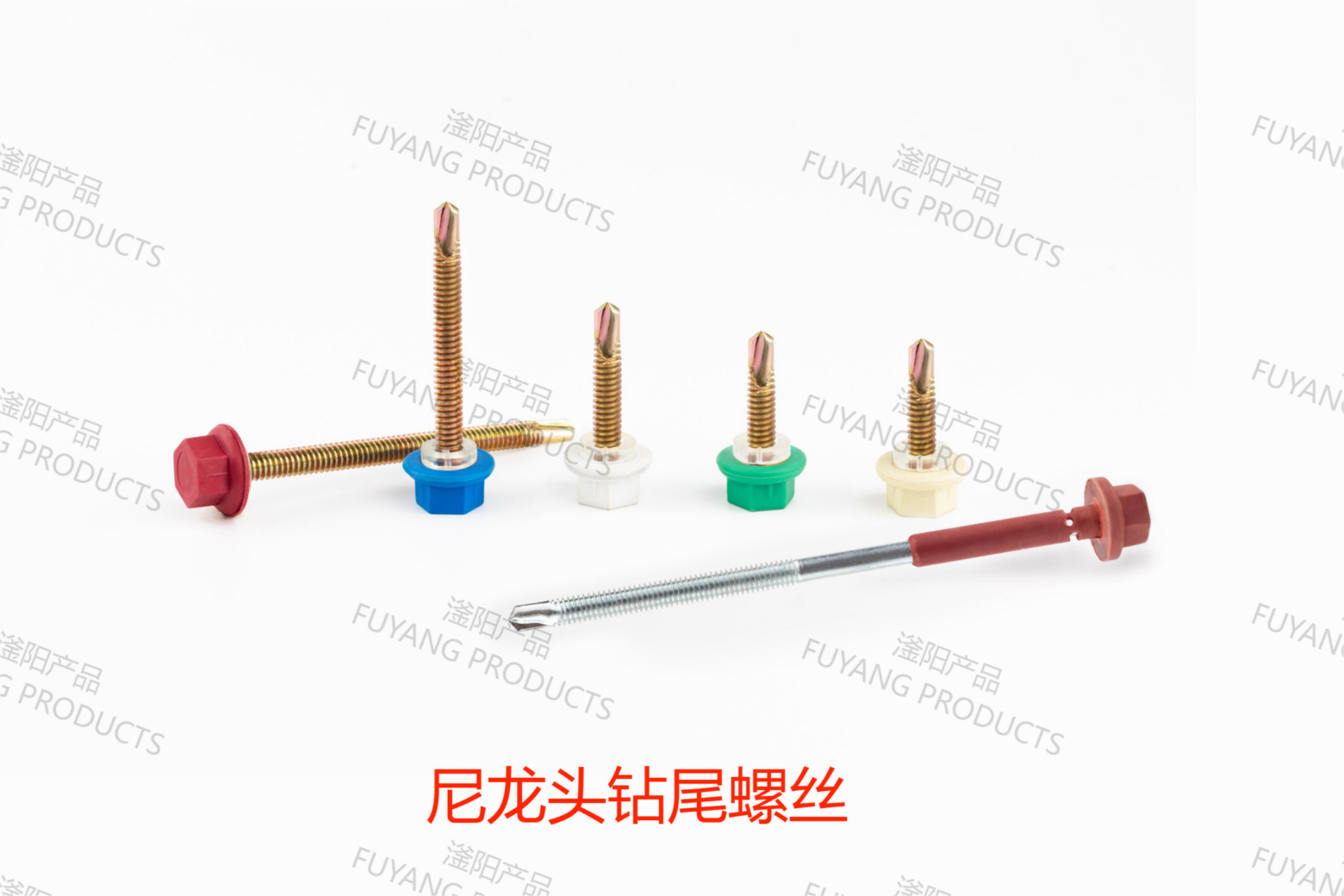

Fuyang Metal is a professional nylon head self drilling screws manufacturer in China. We supply color-matched roofing screws with molded nylon heads and sealing washers for metal roofing, wall cladding, sandwich panels and steel construction.

The metal screw provides drilling and fastening performance, while the molded nylon head covers the external hex head. The nylon can be produced in different RAL colors to coordinate with painted roofing sheets, cladding panels and architectural metal systems.

Our color head drilling screws are available with EPDM washers or metal bonded EPDM sealing washers. Carbon steel C1022, stainless steel SS410 and customized material combinations are available according to the required drilling performance and corrosion environment.

Nylon Head Self Drilling Screws Specifications

Product Name	Nylon Head Self Drilling Screws
Alternative Name	Color Nylon Head Roofing Screws
Standard	Manufacturer Standard or Customized Drawing
Screw Material	Carbon Steel C1022, Stainless Steel SS410 or Bi-Metal
Head Type	Hex Head with Molded Nylon Cap
Head Color	RAL Colors or Customized Color
Washer	EPDM Washer, Metal Bonded EPDM Washer or Customized Sealing Washer
Diameter	4.8mm, 5.5mm, 6.3mm or customized
Length	19mm–200mm or customized
Drill Point	#2, #3, #4, #5 or Extended Drill Point
Surface Treatment	Zinc Plated, Ruspert, Dacromet or customized coating
Packaging	Bulk Carton, Small Box, Pallet or customized export packaging
OEM Service	Custom colors, sizes, washers, labels and packaging available

Color-Matched Molded Nylon Head

The nylon head is molded around the metal hex head to provide a durable colored exterior. It can be matched to roofing sheets, wall panels and other coated metal components using specified RAL colors or customer color samples.

Compared with surface painting alone, a molded nylon head provides a thicker colored covering over the metal screw head. Actual UV resistance, color stability and service life depend on the selected nylon material, additives and exposure conditions.

Carbon Steel and Stainless Steel Options

Carbon Steel C1022 Roofing Screws

Heat-treated carbon steel C1022 provides good drill-point hardness and fastening performance. Zinc plating, Ruspert, Dacromet and customized coatings are available for different corrosion-resistance requirements.

SS410 Drilling Screws

SS410 provides a combination of drilling hardness and corrosion resistance. It can be selected for roofing and cladding applications requiring better corrosion performance than conventional plated carbon steel.

Bi-Metal Options

For applications requiring both corrosion resistance and strong steel-drilling performance, a bi-metal construction may be considered. The exact material combination and performance requirements should be confirmed before production.

EPDM Sealing Washer Options

These screws can be assembled with EPDM washers or metal bonded EPDM washers. When compressed correctly, the washer helps seal the fixing point and reduce water penetration around the screw.

Washer diameter, EPDM thickness, hardness, color and metal backing material can be customized according to the roofing system and customer requirements.

Product Features and Benefits

• Colored nylon head can match roofing and cladding panels.
• External hex head supports fast power-tool installation.
• Drill point combines drilling, tapping and fastening.
• EPDM washer helps seal the fixing point.
• Carbon steel, stainless steel and bi-metal options are available.
• Different RAL colors can be produced for architectural applications.
• Standard and extended drill points are available.
• Custom packaging and private-label service are supported.

Applications of Color Head Roofing Screws

• Metal roofing sheets
• Wall cladding systems
• Sandwich panels
• Steel structures
• Prefabricated buildings
• Warehouses and workshops
• Agricultural buildings
• Roofing accessories and flashings
• Architectural metal panels

For additional screw materials, head styles and washer configurations, view our

complete range of self drilling screws
.

RAL Colors and Customization

Standard RAL colors and customized colors can be supplied according to order quantity. Customers should provide the required RAL code or an approved physical color sample before mass production.

Color approval should be completed before production because small color differences may occur between nylon batches, computer screens, printed color cards and coated metal panels.

Available Sizes and Drill Points

Common diameters include 4.8mm, 5.5mm and 6.3mm. Standard, long-length and customized screws can be manufactured according to the panel profile, insulation thickness, steel support thickness and installation requirements.

Please provide the screw diameter, total length, drill point, washer diameter and thickness of the steel support when requesting a quotation.

Manufacturing and Quality Control

Our production process includes raw material inspection, cold forming, thread rolling, heat treatment, drill point forming, surface treatment, washer assembly, nylon head molding and final packaging.

Quality control includes dimensional inspection, drill point checking, hardness testing, drilling performance testing, coating inspection, nylon color checking, head adhesion inspection, washer inspection and packaging inspection.

Packaging and OEM Service

Products can be supplied in bulk cartons, small boxes, plastic bags, master cartons and export pallets. Customized box designs, customer logos, labels, barcode stickers, carton marks and pallet packaging are available.

Request a Quote

Contact Fuyang Metal for available dimensions, RAL colors, sealing washers, samples, bulk prices and OEM packaging. Please include the material, diameter, length, drill point, washer, RAL color and required quantity in your inquiry.
